China Electric Transfer Cart Manufacturer Custom Solutions
✅ Wide Load Range (1T-200T) ✅ CE & ISO Certified (IP54, 10,000+ Hrs)
✅ Save 30% Factory Direct ✅ 15-Day Fast Delivery
Trusted by Automotive, Warehousing & Steel Industries Worldwide.
Free Custom Design | Get Your Quote in 2 Hours!
China industrial electric transfer carts manufacturer
✅ Wide Load Range (1T-200T) ✅ CE & ISO Certified (IP54, 10,000+ Hrs)
✅ Save 30% Factory Direct ✅ 15-Day Fast Delivery
Trusted by Automotive, Warehousing & Steel Industries Worldwide.
Free Custom Design | Get Your Quote in 2 Hours!
electric transfer carts
Our electric transfer carts are designed to simplify material handling. We offer both rail and trackless configurations, and the power supply can be selected from cable reels, batteries, or low-voltage rails according to your needs. From 1-ton light transport to 300-ton ultra-heavy load handling, we create exclusive solutions for each customer!
- Rated Load:10T
- Table Size: Customized
- Power Supply: Battery Powered
- Remote Control: Wired/Wireless
- Running Speed: 30m/min
- Rated Load:20T
- Table Size: Customized
- Power Supply: Battery Powered
- Battery Capacity: 200Ah
- Running Speed: 30m/min
- Rated Load:30T
- Table Size: Customized
- Power Supply: Battery Powered
- Battery Capacity: 300Ah
- Running Speed: 30m/min
- Rated Load:35
- Table Size: Customized
- Power Supply: Battery Powered
- Remote Control: Wired/Wireless
- Running Speed: 20m/min
- Rated Load:80T
- Table Size: Customized
- Power Supply: Low Voltage Track Power
- Rail Distance: No restrictions
- Run time: 24 Hours
- Rated Load:50T
- Table Size: Customized
- Power Supply: Cable Drum Power
- Rail Distance: 2000mm
- Running Speed: 25m/min
Customized Transfer Cart
We provide 100% customized services – design exclusive transfer solutions according to your special needs.
- Load Capacity：1-200T load capacity.
- Table: V-shaped frame,roller, flat structure, customized bracket, etc.
- Table Size: Custom made to your size.
- Working height: Hydraulic lift, scissor lift device.
- Operation Mode Options: Pendant/remote/semi-auto/full-auto.
Buy Your Electric Transfer Cart Today!
If you are looking for heavy material handling solutions, we invite you to contact us! Get professional custom service and free quotation now. Click here to send your inquiry!
Electric Transfer Cart Comparison
Compare KPW, KPX, KPD & KPJ series electric transfer carts - explore key differences in load capacity, power systems, and applications to find your ideal industrial material handling solution.

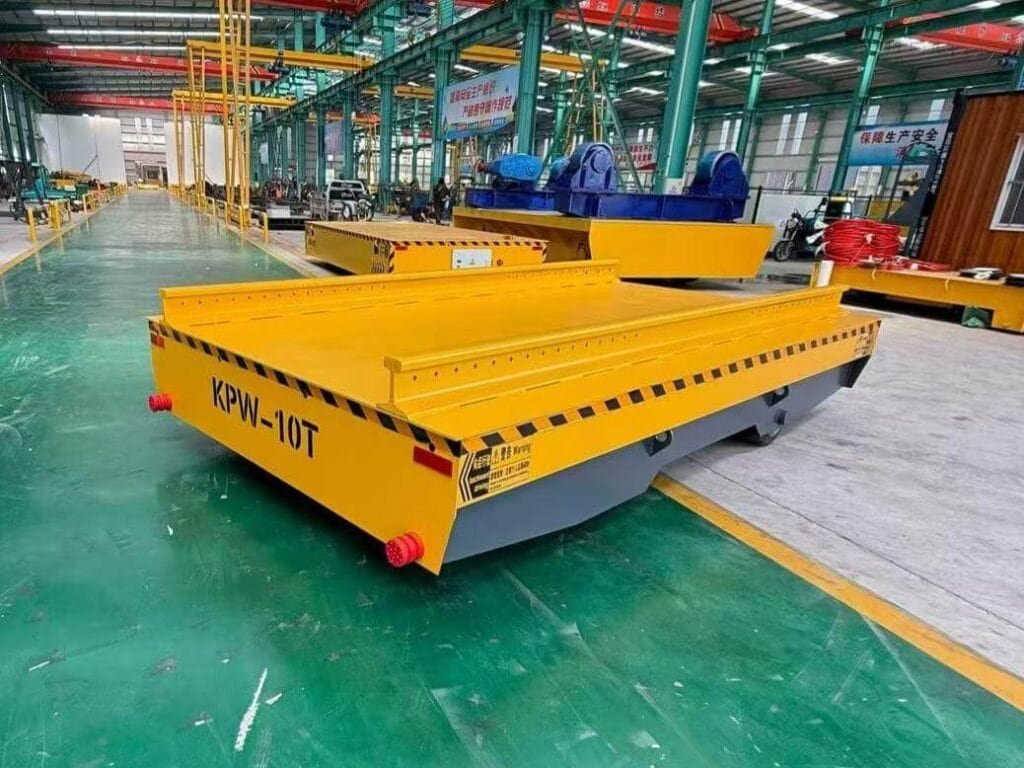

KPW Trackless Transfer Cart
Load capacity: 1-300t, available in battery powered version.
The KPW Trackless Transfer Cart features three steering modes: Hydraulic Steering, Differential Steering, and Lateral Movement Steering, designed for precise control across diverse operational scenarios.
| Model | KPW trackless transfer cart |
| Load capacity | 1t~300t |
| Table size | Can be customized |
| Wheel base | 1080~2000mm |
| Running speed | 0~25m/min |
| Control mode | Button / remote control |
KPX battery rail transfer cart
Load capacity: 1-150t, power source: battery powered.
The KPX series transfer carts can travel on curves and switches, have unlimited running distance, have no insulation requirements for the tracks, and have low requirements for track laying.
| Model | KPX rail transfer cart |
| Load capacity | 1t~150t |
| Table size | Can be customized |
| Rail inner gauge | 1200~2000mm |
| Battery voltage | 24~72V |
| Control mode | Button / remote control |
KPD low-voltage rail transfer cart
Load capacity: 1-300t, power source: rail powered.
Through a ground step-down system, the KPD series transfer carts reduce the three-phase or two-phase 380V AC voltage to a safe 36V voltage. It can work continuously for 24 hours without being restricted by operating distance, making factory transportation convenient.
| Model | KPD |
| Load capacity | 1t~300t |
| Table size | Can be customized |
| Wheel base | 1200~7000mm |
| Rail inner gauge | 1200~2000mm |
| Control mode | button / remote control |
KPJ electric reel type rail transfer cart
Load capacity: 1-200t, power source: cable reel powered.
The KPJ series transfer cart is powered by a cable drum at 380V AC, and the motor drives the flat car to run. Affected by the power supply length of the cable drum, the running distance is ≤200m, which is suitable for harsh working conditions.
| Model | KPJ |
| Load capacity | 1t~200t |
| Table size | Can be customized |
| Running distance | ≤200m |
| Rail inner gauge | 1200~2000mm |
| Running speed | 0~25m/min |
Contact Us Now!
Upgrade Your Material Handling Today! Free Consultation & Custom Quote Within 24H.
Multi-scenario Electric Transfer Carts
According to different material characteristics and processing requirements, we provide various professional transfer carts: hydraulic lift transfer carts, coil transfer cart, roller transfer cart etc.
Synchronous hydraulic lifting system, ideal for precision equipment installation and mold handling.
Low-profile scissor mechanism (0.5-3m lift), optimized for vertical material transfer in confined workshops.
V-saddle with adjustable anti-roll guard, compatible with Φ300-2500mm coils/cables, eliminating rollover risks.
Motorized roller conveyor, enables seamless loading/unloading of flat materials or crates.
The 360° rotating design enables precise direction changes, suitable for heavy-load steering and track switching in narrow spaces
1.2m removable fences with full-perimeter protection, essential for hazardous material handling.
our transfer Cart Performance
See our transfer carts in action，it can easily cope with the needs of material transfer of 1-200 tons, and help workshops and warehouses achieve accurate and efficient logistics cycles.
Hiosen Smart Factory
60,000㎡ facility with 3 automated lines, producing 3,000+ carts annually. 20 KUKA welding robots ensure ±1mm precision. 72-hour standard model delivery, 15-30 days for custom orders.
Worldwide Shipping
Ships globally with 15-day custom production. Most orders arrive in 7-15 days (US/EU). Real-time tracking & secure packaging. Contact us for expedited solutions or bulk order discounts.
Our Customer
We sincerely invite you to visit our factory, communicate face to face with our team of experts, learn more about transfer carts, and help your business development!
