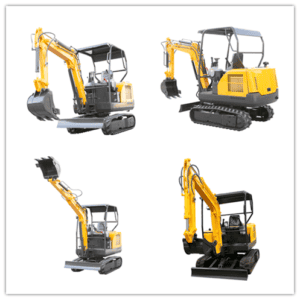

The new mini 1.8 ton excavator is the company’s celebrity product and is deeply cherished via consumers.
The success of this product lies in its compact and bendy design, which approves it to be flexibly operated in a small area to entire a range of excavation, soil turning and different tasks. Whether in farms, gardens, city greening, indoors decoration, rural development and different scenarios.
New mini 1.8 ton excavator with KUBOTA engine, triple main pump, swing motor, extendable undercarriage, Valve.
| Model | HX20 |
|---|---|
| Weight | 1800KG |
| Dimension | 3600*1060*2200 |
| Bucket Capacity | 0.07m³ |
| Engine power | 18.1KW |
The new mini 1.8 ton excavator is the company’s celebrity product and is deeply cherished via consumers.
The success of this product lies in its compact and bendy design, which approves it to be flexibly operated in a small area to entire a range of excavation, soil turning and different tasks. Whether in farms, gardens, city greening, indoors decoration, rural development and different scenarios.
New mini 1.8 ton excavator with KUBOTA engine, triple main pump, swing motor, extendable undercarriage, Valve.
| Model | HX20 |
| Bucket capacity | 0.06m³ |
| Engine | Laidong/Changchai/Yanmar/Kubota |
| Walking speed | 2.5 Km/h |
| Rotation speed | 10r/min |
| Total length | 3600 mm |
| Total width | 1060 mm |
| Total height | 2200 mm |
| Crawler length | 1900 mm |
| Crawler width |
230 mm
|
| Body width | 1060 mm |
| Maximum digging height | 3365 mm |
| Maximum dumping height | 2385 mm |
| Maximum digging depth | 2050 mm |
| Maximum digging radius | 3860 mm |
| Platform clearance to ground | 458 mm |
| Swing angle | 360° |
| Turning radius | 1200 mm |
| Climbing gradient | 30° |
| Bulldozer maximum raising height | 230 mm |
| Bulldozer maximum digging depth | 275 mm |
| Pump | 18 Mpa, 2500rpm |
1. The mini excavator is equipped with top brand engine such as Yanmar or Kubota, satisfying the EURO5 and EPA Tier4 emission standard.
2. The hydraulic system adopts the load-sensitive mechanism, making each move operated smoothly with help of the branded pump.
3. With many years’ manufacturing experience, the engines and hydraulic systems are matched perfectly, so the mini excavator has enjoyed the best
efficiency and performance.
4. The whole body adopts the reinforced material, making it stronger from the initial.
5. The scientifically compact design of each model, increasing its reliability while decreasing the possibilities of machine breakdown.
6. Most models are standard with hydraulic control and boom swing functions. So the mini excavators could make more moves easily at the lowest time.
Also, it releases hard work of the operators.
7. With retractable undercarriage or chassis, the mini excavator could pass through the narrow space easily. Together with double speed motor, it can
walk faster improving all work efficiency.
8. Standard with one backup hydraulic oil pump, so that many tools such as Hammer, Auger, Rake, Thumb, Grapple etc. could be attached to complete
various jobs.
Engine : Laidong,Yanmar,Kubota
Control: Hydraulic pilot or mechanical
Cabin: Open cabin or canopy and close cabin
Track: Rubber and steel track/crawler are optional
Air Conditioner: Air conditioning system could be equipped within the enclosed cabin.
Chassis: The retractable track or chassis could be chose.
Motor: High-low two speed motor is optional
Color: Yellow,Orange,Red,Blue,Green,Black.Etc
